"PP WOVEN BAG" REEL TO REEL LINE MACHINE

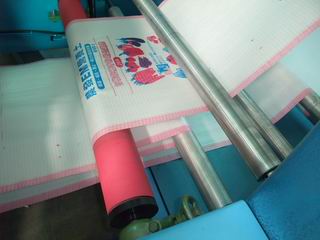

"PP WOVEN BAG" 3 COLORS REEL TO REEL PRINTING LINE

LE-3800PR        PRINTING MACHINE



          VCD1     VCD2

      REEL TO REEL PRINTING MACHINE

MODEL

LE-3800PRS

CHARACTERISTIC

AUTOMATIC FLEXOGRAPHIC COLOR PRINTING



APPLICABLE PLASTIC CLOTH

PP WOVEN BAG & PE BAG

     SERVO MOTOR      12HP

PRODUCTION CAPACITY

70~100M/Minute

        PRINTING POSSIBILITY

       0+3 , 1+2 , 2+1

NO.OF COLOR

3 COLORS

PRINTING WIDTH

400MM~850 MM

PRINTING LENGTH

500-1300 MM

PRINTING

RUBBER PLATE , ZINE PLATE (7MM)

POWER SERVO MOTOR

12HP

POWER COMSUMPTION

14.5KW

PRINTING INK

INK

MACHINE DIMENSION

L7800 x W2200 x H3750MM (N.W 7500KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

  1. 360º SERVOMOTOR continuous and adjustable longitudinal register device.
  2. TYPE SERVO MOTOR DRIVE REEL TO REEL PRINTING MACHINE
  3. Easy operation flexible starting accurate color register.
  4. The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
  5. Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
  6. Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
  7. Current output type temperature control system makes heating quicker and electricity saving.
  8. The printing ink is spread by the knurled cylinder with even ink color.
  9. Obverse and reverse side once-through continuous printing.
  10. The imported frequency control of motor speed adapts to different printing speeds.
  11. There are  inch&stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
OPTIONAL EQUIPMENTS:

Doctor Blade Type

3PCS

DOCTOR BLADES
