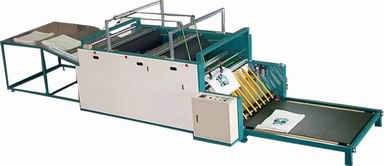

LE-02





Pp/pe woven bag flexographic printing press Special Features:
Can be individually operated(manual feeding type) or connect with most
brand's conversion line and become a integrated line that combines cutting,
sewing & printing features into a fully automatic processing unit.
Single sided or double sided, 1 to 6 colors combination available per request.
Special separation device between color-plate cylinder and conveying belt to
avoid stain during empty load.
No need to change roller(s) for different size's imprint and/or bag measurements
within rated range.


         Main Feature:

·High Output UpTo 50 Bag/Min.

·Equipped ink Circulation Pump ln Each ColorFor Manage Proper ink Consistency.

·Special Desinrn For Change The Printing Plate Quickly And Easily.

·Easy Operation.

·Patented Separation Device Between Printing Cylinder And Conveyor Belt To Avoid Stain Conveyor During Empty Load.

MODEL
LE-01

LE-02

CHARACTERISTIC
AUTOMATIC ONE SIDE COLOR PRINTING

AUTOMATIC ONE SIDE COLOR PRINTING

APPLICABLE PLASTIC CLOTH
PP/PE WOVEN BAGS

PP/PE WOVEN BAGS

PRODUCTION CAPACITY
0 ~ 40(BAG/MIN)

0 ~ 40(BAG/MIN)

CAPACITY OP BAG
1300mm X 850mm

1300mm X 850mm

AREA OF PRINTING
1050mm X 800mm

1050mm X 800mm

PRINTING
RUBBER PLATE , ZINE PLATE (7MM)

RUBBER PLATE , ZINE PLATE (7MM)

MAN POWER

1~2 PERSONS

1~2 PERSONS

MAIN DRIVING MOTOR

1HP

1.5HP

POWER REQUIRED
2KW

2KW

PRINTING INK
FLEXO INK

FLEXO INK

AIR COMPRESSOR

1HP X 1UNIT

1HP X 1UNIT

MACHINE DIMENSION
L5757 x W1650 x H1000MM (N.W1650KGS)

L6857 x W1650 x H1000MM (N.W2100KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
