"PP WOVEN BAG" REEL TO REEL LINE MACHINE

PP.PE WOVEN BAG 2 COLORS  REEL TO REEL PRINTING LINE

PRINTING MACHINE

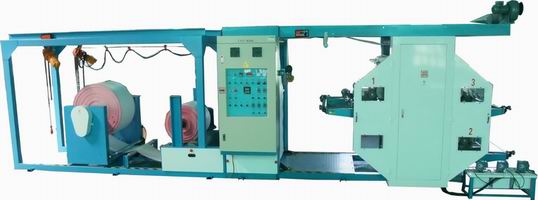

  LE-2800PR  TYPE REEL TO REEL PRINTING MACHINE



  vcd

MODEL

LE-2800PR

CHARACTERISTIC

AUTOMATIC FLEXOGRAPHIC COLOR PRINTING



APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS&PE BAG

     SERVO MOTOR     9HP

PRODUCTION CAPACITY

60~90M/Minute

        PRINTING POSSIBILITY

       0+2 , 1+1

NO.OF COLOR

2 COLORS

PRINTING WIDTH

400MM~850 MM

PRINTING LENGTH

500-1300 MM

PRINTING

RUBBER PLATE , ZINE PLATE (7MM)

POWER SERVO MOTOR

9HP

POWER COMSUMPTION

14.2KW

PRINTING INK

INK

MACHINE DIMENSION

L7800 x W2200 x H3750MM (N.W 7500KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

  1. 360º SERVOMOTOR continuous and adjustable longitudinal register device.
  2. TYPE SERVO MOTOR DRIVE REEL TO REEL PRINTING MACHINE
  3. Easy operation flexible starting accurate color register.
  4. The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
  5. Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
  6. Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
  7. Current output type temperature control system makes heating quicker and electricity saving.
  8. The printing ink is spread by the knurled cylinder with even ink color.
  9. Obverse and reverse side once-through continuous printing.
  10. The imported frequency control of motor speed adapts to different printing speeds.
  11. There are inch&stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
OPTIONAL EQUIPMENTS:

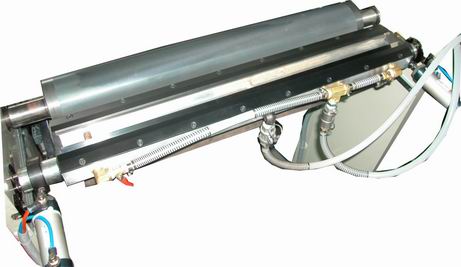

Doctor Blade Type

2PCS

DOCTOR BLADES
