MODEL 型號

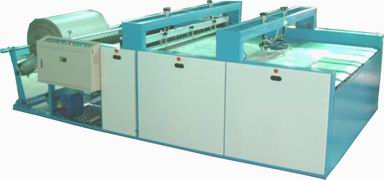

       LE-2200H

MAX. CUTTING WIDTH 最大寬度

 800MM~2200MM

MAX. CUTTING LENGTH 最大長度

600-9999MM

MAX. CUTTING Circular aperture & X 最大切圓孔

300MMx1        390MMx1        440MMx1

Accuracy誤差

+-6mm

"X" Hole and "O" hole Punch aailable

1set

Spare Parts備件

1 Lot  (Free of Charge)

DRIVING AIR切斷空壓缸

80X80

WORKING CAPACITY 產量

18-24 cut/min

DRIVING MOTOR 馬達

2HP

ELECTRICITY HEAT 電熱量

4.8KVA

BAG COUNTER 計袋器

1set

AUTO UNWINDER 自動放布台

1set

LOADING CAPACITY          載重量

1850kgs

MANPOWER REQUIRED 人工需求

1~2person

MACHINERY NET WEIGHT   機器重量

1450kgs

MACHINERY DIMENSION 機器尺寸

L4980 x W2530 x H1650MM

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
規格若有變動恕不另行通知
