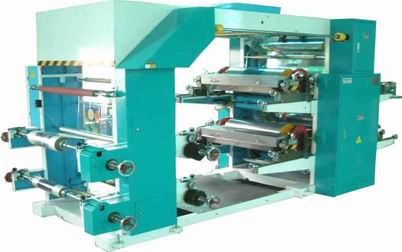

LE-4800A

AUTOMATIC SERIES FLEXIBLE LETTER PRESS COLOR PRINTING

　

USE:

This machine is suitable for printing such packing materials as polyethylene polypro pylene plastic bag glass paper and roll paper etc And it is a kind of ideal printing equipment for producing paper packing bag for food supermarket handbag vest bag clothes bag etc

performance and characteristics:

  1. 360º continuous and adjustable longitudinal register device.
  2. Easy operation flexible starting accurate color register.
  3. The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
  4. Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
  5. Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
  6. Current output type temperature control system makes heating quicker and electricity saving.
  7. The printing ink is spread by the knurled cylinder with even ink color.
  8. Obverse and reverse side once-through continuous printing.
  9. The imported frequency control of motor speed adapts to different printing speeds.
  10. There are lnching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

MODEL

LE-4600A

LE-4800A

LE-41000A

CHARACTERISTIC

AUTOMATIC SERIES FLEXIBLE LETTER PRESS COLOR PRINTING

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS,HDPE ,LDPE ,PE ,OPP,PET,PVC,PAPER

PRODUCTION CAPACITY

60~100M/Minute

60~100M/Minute

60~100M/Minute

       MAX.DIAMETER OF ROLLING AND RELEASING

       450MM

NO.OF COLOR

4 COLORS

4 COLORS 4 COLORS

PRINTING WIDTH

600 MM

800 MM 1000 MM



PRINTING LENGTH

191-914 MM

191-914 MM  191-914 MM

PRINTING

RUBBER PLATE , ZINE PLATE (2.54MM)

TOTAL POWER OF MACHINE

10.9KW

12.8KW

14.7KW

PRINTING INK

INK



      MACHINE DIMENSION

  L4200 x W1600 x H2400MM

L4200 x W1800 x H2400MM L4200 x W2000 x H2400MM

WEIGHT OF MACHINE

 (N.W 3000KGS)

(N.W 3500KGS)

(N.W 4000KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
