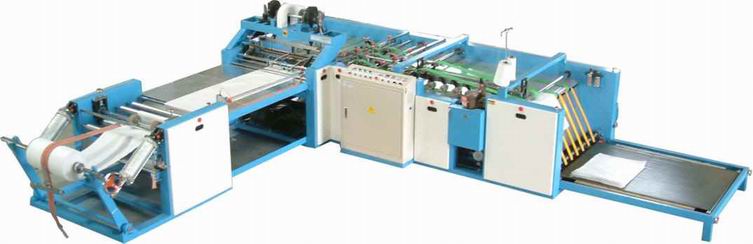

AUTOMATIC PP/PE BAG HEAT CUTTING AND SEWING MACHINE
LE-40+EP

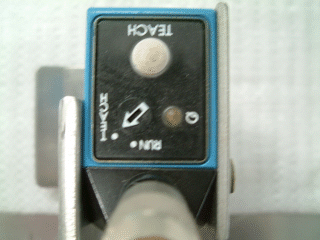

E.P.C PRINTING PHOTOCELL (MARK)
|
MODEL |
LE-40+EP
|
||||
|
CHARACTERISTIC
|
AUTOMATIC CUTTING&SEWING |
||||
|
CONTINUOUS
CUTTING |
HEAT & COLD SUCCESSIVE CUTTING |
||||
|
SEWING MACHINE |
(DN-2HS)
1PCS |
||||
|
LAMINATED CUTTING |
1PCS |
||||
|
APPLICABLE
PLASTIC CLOTH |
PP/PE WOVEN BAGS |
||||
|
PRODUCTION CAPACITY |
32~40pcs (BAG/MIN) |
||||
|
CUTTING LENGTH |
550~1250
MM |
||||
|
CUTTING WIDTH |
400~850
MM |
||||
|
CUTTING ACCURACY |
+.- 4MM |
||||
|
DELIVERY UNIT |
COUNTING STACK TYPE BELT CONVEYOR |
||||
|
PRINTING PHOTOCELL (MARK) |
1PCS |
||||
|
E.P.C AUTOMATIC GUIDING DEVICE |
1PCS |
||||
|
BAG MOUTH ANTI-STUCK DEVICE |
EQUIPPED |
||||
|
STITCHING RANGE |
6~12
(P/MM) |
||||
|
DIAMETER OF UNWINDING CLOTH |
1200
MM |
||||
|
SIDE FOLDING WIDTH |
15~25MM
|
||||
|
MAN POWER |
1
PERSONS |
||||
|
MAIN DRIVING MOTOR
|
AC 2HPX1 , 1HPX2 , 1/4HPX1 |
||||
|
POWER REQUIRED |
9KW
|
||||
|
AIR COMPRESSOR |
3HP
X 1UNIT |
||||
|
MACHINE DIMENSION |
L7680
x W3880 x H1360MM ( N.W 2800KGS ) |
||||
|
CUBAGE ARK |
1X20" |
||||
|
THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
|
|||||
