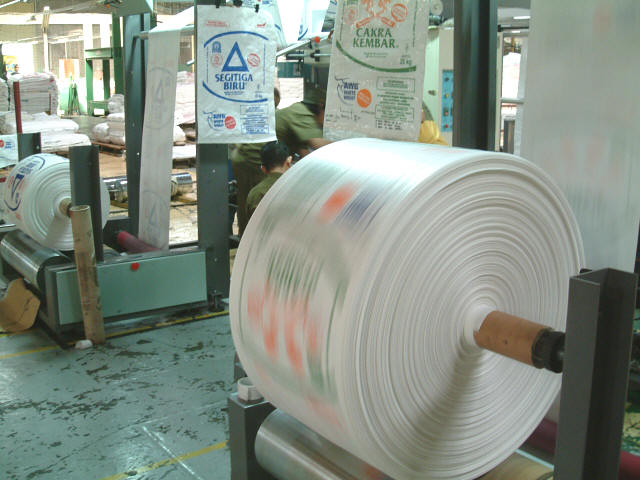

"PP WOVEN BAG" REEL TO REEL LINE MACHINE

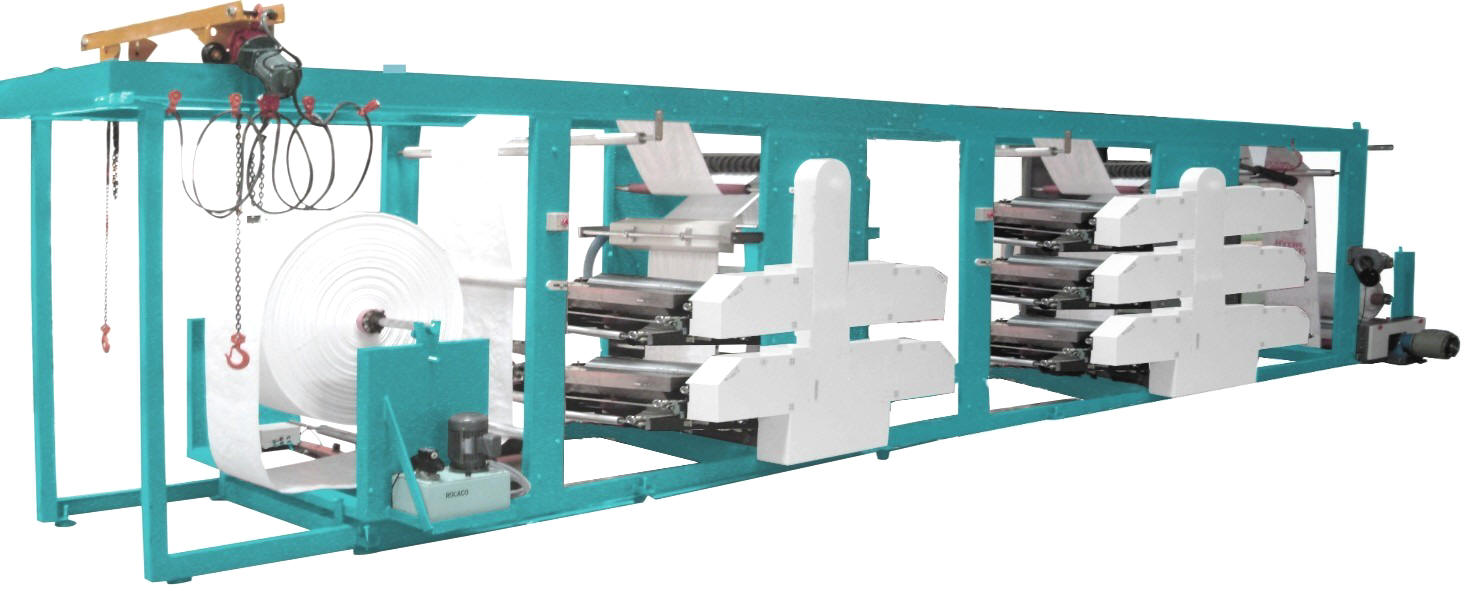

PP.PE WOVEN BAG 10 COLORS REEL TO REEL PRINTING LINE

PRINTING MACHINE  FLEXOGRAPHIC

　



型號

MODEL

LE-10800PR

特性

CHARACTERISTIC

AUTOMATIC FLEXOGRAPHIC COLOR PRINTING

適用材質

APPLICABLE PLASTIC CLOTH

PP/PE WOVEN BAGS

產量

PRODUCTION CAPACITY

60~90M/Minute

印刷組合

        PRINTING POSSIBILITY

      0+10 , 1+9 , 2+8 , 3+7 , 4+6 , 5+5

印刷顏色

NO.OF COLOR

10 COLORS

印刷寬度

PRINTING WIDTH

300MM~900 MM

印刷長度

PRINTING LENGTH

600-1250 MM

印刷版

PRINTING

RUBBER PLATE , ZINE PLATE (7MM)

主要馬力

POWER

8HP

耗電量

POWER COMSUMPTION

18.8KW

油墨

PRINTING INK

水性

機械尺寸

MACHINE DIMENSION

L11200 x W1900 x H3400MM (N.W 6800KGS)

THE SPECIFICATIONS AND SIZES MENTIONED IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE        規格若有變動恕不另行通知

OPTIONAL EQUIPMENTS:
SERVO MOTOR 11PCS

Doctor Blade Type

10PCS
  1. 360º continuous and adjustable longitudinal register device.
  2. Easy operation flexible starting accurate color register.
  3. The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.
  4. Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.
  5. Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.
  6. Current output type temperature control system makes heating quicker and electricity saving.
  7. The printing ink is spread by the knurled cylinder with even ink color.
  8. Obverse and reverse side once-through continuous printing.
  9. The imported frequency control of motor speed adapts to different printing speeds.
  10. There are lnching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

 PS: Hereinbefore machine predicate beauty equipment:

1:Machine cogwheel poor fast style. Microposition ceaseless machine transfer version to version device,Can never again by means of close down Shih just  microposition somewhere or so transfer version to version, Fast to version. Fast to version by means of arrive the finely of print quality raising.

2:Szu adoption AC motor torsional  big, Auto measure fast receive expect pace,  Autoes measures fasts receive expect by littles to great paces ,And only need to adjust as soon as transfer  Niu alterable print  pace.Non old types of have two transfers Niu mains motors holds on Shih receive expect also ask for with transfers have different  Pu phenomena.

3. DANCER TENSION CONTROL SECTION 2 SET

       FLEXOGRAPHIC PRINTING SECTION: 10 COLORS

A.     FLEXOGRAPHIC PRINTING INCLUDIN凸版印刷機主體由以下組合: 10 SETS

1.    INK RUBBER ROLLER 120X850MM --------------1PC

2.    ANILOX ROLLER,250LINE 130X850MM 250#------------1PC

3.    PRINTING CYLINDER CIR 500X850MM ---------1PC

4.    IMPRESS STEEL ROLLER 162X850MM ---------1PC

B.     VERTICAL COLOR REGISTRATION DEVICE BY MANUAL:

360º continuous and adjustable longitudinal register device Motor adjustment ---------------9 SETS(9套)

C.     HORIZENTAL COLOR REGISTRATION DEVICE BY MANUAL:------------10 SETS(10套)

D.     90W HP AC MOTOR FOR DRIVIN INK RUBBER ROLLER IN EACH INK TRAY:---------10PCS  90W HP AC MOTOR

G.         STAINLESS STEEL INK TRAY WITH CORVER (UP/DOWN ADJUSTABLE):-------------------10PCS (10只)

H.         CENTRE BLOW-DRYING SYSTEM INCLUDING:

u1HP DRYER BLOWER MOTOR  ---------------2PC

uELECTRIC HEATER BOX -------11SET

u3.6KW ELECTRIC HEATER ------------11PCS

uDRYING-OVEN :   11PCS

uMAIN-DRIVING SHAFT WITH BELT ------1SET (1套)

I.            HORSEPOWER LIST  :

u1 PC OF 5HP AC MOTOR FOR MAIN DRIVING 8HP AC

u1 PCS OF 90W HP AC MOTOR FOR INK ROLLER 90W HP AC

u1 PC 1HP AC MOTOR FOR DRYING-BLOW 1HP

DOCTOR BLADES
